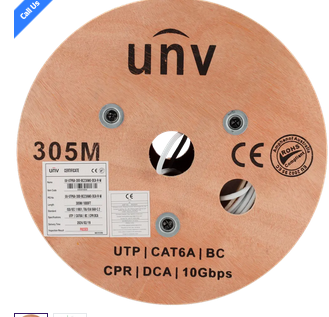

UNV Cat6A Outdoor UTP Network Cable (305m) - Pure Copper | Weather-Resistant & 10G Speed

UNV Cat6A Outdoor UTP Network Cable (305m) - Pure Copper | Weather-Resistant & 10G Speed

Uniview Cat6a(UTP),305m,Overseas
UV-UTP6A-300-BC23AWG-DCA-R-W
Cable
Product model
UV-UTP6A-300-BC23AWG-DCA-R-W
Product specification
Cat6A. U/UTP. 4x2x0.55mm
Test Standard
ISO/IEC11801 ED.2
ANSI/TIA-568-C.2
Packing length
305+-1 m
Rip-cord
Yes
Crossing backbone
Yes
Ambient temperature
-20℃～75℃
Conductor
Material
OFC
AWG
23
Nom.O.D.(mm)
0.55+-0.005 mm
DC resistance
<=95Ω/km
Insulation
Material
HDPE
Thickness
0.21+0.03mm
Diameter
0.98+-0.05 mm
Color
Blue/White- Blue,Green/White-Green,Orange/White-Orange,Brown/White-Brown
Pitch
Offset pitch
<=25mm
Cable pitch
<=120mm
Sheath
Material
LSZH (EN13501-6 DCA)
Fire Resistance
CPR Dca
External O.D.
6.0+-0.3 mm
Thickness
0.55+-0.15 mm
Color
White
Tensile strength
>10 Mpa
Surface Printing
Letter height
3.0+-0.3 mm
Print error / Space
1+-0.005 m
Color
Black
Packing
Packing
Reel
Once packing dimension
380mm*200mm*200mm
